codac::SIVIAPaving Class Reference

Paving resulting from a Set-Inversion Via Interval Analysis. More...

#include <codac_SIVIAPaving.h>

Inheritance diagram for codac::SIVIAPaving:

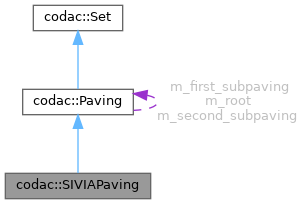

Collaboration diagram for codac::SIVIAPaving:

Public Member Functions
	SIVIAPaving (const IntervalVector &init_box)
	Initializes a SIVIA paving.
void	compute (const Function &f, const IntervalVector &y, float precision)
	Computes the paving from the constraint \(\mathbf{f}(\mathbf{x})\in[\mathbf{y}]\).
void	compute (Ctc &ctc, float precision)
	Computes the paving from using a contractor.
void	compute (ibex::Sep &sep, float precision)
	Computes the paving from a separator.
Public Member Functions inherited from codac::Paving
	Paving (const IntervalVector &box, SetValue value=SetValue::UNKNOWN)
	Creates a paving.
	~Paving ()
	Paving destructor.
Paving *	get_first_subpaving ()
	Points to the first subpaving of the binary tree implementing this paving set.
const Paving *	get_first_subpaving () const
	Points to the first subpaving of the binary tree implementing this paving set.
Paving *	get_second_subpaving ()
	Points to the second subpaving of the binary tree implementing this paving set.
const Paving *	get_second_subpaving () const
	Points to the second subpaving of the binary tree implementing this paving set.
Paving *	get_root ()
	Returns a pointer to the root of the paving structure.
const Paving *	get_root () const
	Returns a pointer to the root of the paving structure.
Paving *	get_first_leaf (SetValue val, bool without_flag=false)
	Points to the first leaf of the specified value.
const Paving *	get_first_leaf (SetValue val, bool without_flag=false) const
	Points to the first leaf of the paving structure.
void	bisect (float ratio=0.49)
	Bisects this paving into two subpavings with some ratio bisection.
bool	is_leaf () const
	Returns true if this paving is made of two subpavings.
bool	flag () const
	Tests whether this paving has been flagged or not.
void	set_flag () const
	Flags this paving and all its children.
void	reset_flags () const
	Removes the flags of this Paving and all its children.
void	reset_paving (SetValue value=SetValue::UNKNOWN)
	Same as building a new Paving object.
void	get_boxes (std::list< IntervalVector > &l_subpavings, SetValue val, SetValue neg_val=SetValue::DEFAULT) const
	Returns a set of boxes leaves of some value.
void	get_pavings_intersecting (SetValue val, const IntervalVector &box_to_intersect, std::vector< const Paving * > &v_subpavings, bool no_degenerated_intersection=false) const
	Returns a set of Paving leaves of some value and intersecting a given box.
void	get_neighbours (std::vector< const Paving * > &v_neighbours, SetValue val=SetValue::IN|SetValue::OUT|SetValue::UNKNOWN, bool without_flag=false) const
	Returns the neighbors (adjacent items) of this Paving, having some value.
std::vector< ConnectedSubset >	get_connected_subsets (bool sort_by_size=false, SetValue val=SetValue::UNKNOWN|SetValue::IN) const
	Returns the set of connected subsets of this paving.
Public Member Functions inherited from codac::Set
	Set (const IntervalVector &box, SetValue value=SetValue::UNKNOWN)
	Creates a set.
	~Set ()
	Set destructor.
SetValue	value () const
	Returns the value of this set.
int	size () const
	Returns the dimension of the paving.
const IntervalVector &	box () const
	Returns the n-dimensional box representing this set.
void	set_value (SetValue value)
	Sets the integer value for this set.

Additional Inherited Members
Public Attributes inherited from codac::Paving
bool	m_flag = false
	optional flag, can be used by search algorithms
Paving *	m_root = nullptr
	pointer to the root
Paving *	m_second_subpaving = nullptr
	tree structure
Protected Attributes inherited from codac::Set
SetValue	m_value
	integer value of this set
IntervalVector	m_box
	box representing this set

Detailed Description

Paving resulting from a Set-Inversion Via Interval Analysis.

Constructor & Destructor Documentation

SIVIAPaving()

codac::SIVIAPaving::SIVIAPaving

(

const IntervalVector &

init_box

)

Initializes a SIVIA paving.

Parameters

init_box

n-dimensional box defining the hull of the paving

Member Function Documentation

compute() [1/3]

void codac::SIVIAPaving::compute	(	const Function &	f,
		const IntervalVector &	y,
		float	precision )

Computes the paving from the constraint \(\mathbf{f}(\mathbf{x})\in[\mathbf{y}]\).

Parameters

f	IBEX static function \(\mathbf{f}\), possibly non-linear
y	box \([\mathbf{y}]\)
precision	precision \(\epsilon\) of the SIVIA approximation

compute() [2/3]

void codac::SIVIAPaving::compute	(	Ctc &	ctc,
		float	precision )

Computes the paving from using a contractor.

Parameters

ctc	static contractor on boxes
precision	precision \(\epsilon\) of the SIVIA approximation

compute() [3/3]

void codac::SIVIAPaving::compute	(	ibex::Sep &	sep,
		float	precision )

Computes the paving from a separator.

Parameters

sep	separator object
precision	precision \(\epsilon\) of the SIVIA approximation

---

The documentation for this class was generated from the following file:

• /home/simon/codac/src/core/paving/codac_SIVIAPaving.h
