codac2_drawwhilepaving.h File Reference

#include "codac2_Ctc.h"
#include "codac2_Sep.h"
#include "codac2_Figure2D.h"

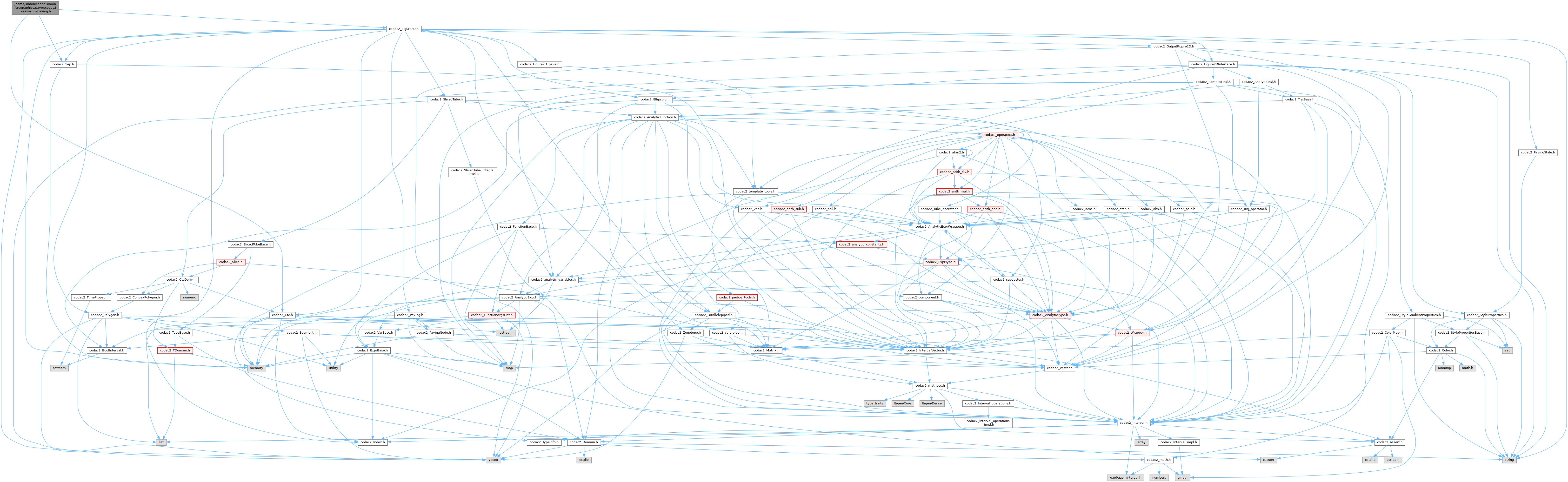

Include dependency graph for codac2_drawwhilepaving.h:

Go to the source code of this file.

Functions
void	codac2::draw_while_paving (const IntervalVector &x0, std::shared_ptr< const CtcBase< IntervalVector > > c, double eps, std::shared_ptr< Figure2D > fig=nullptr)
	Draws the paving while it is being computed.
void	codac2::draw_while_paving (const IntervalVector &x0, const CtcBase< IntervalVector > &c, double eps, std::shared_ptr< Figure2D > fig=nullptr)
	Draws the paving while it is being computed.
void	codac2::draw_while_paving (const IntervalVector &x0, std::shared_ptr< const SepBase > s, double eps, std::shared_ptr< Figure2D > fig=nullptr)
	Draws the paving while it is being computed.
void	codac2::draw_while_paving (const IntervalVector &x0, const SepBase &s, double eps, std::shared_ptr< Figure2D > fig=nullptr)
	Draws the paving while it is being computed.

Detailed Description

Date

2024

Author

Simon Rohou

Copyright

Copyright 2024 Codac Team

License: GNU Lesser General Public License (LGPL)

Function Documentation

draw_while_paving() [1/4]

void codac2::draw_while_paving	(	const IntervalVector &	x0,
		std::shared_ptr< const CtcBase< IntervalVector > >	c,
		double	eps,
		std::shared_ptr< Figure2D >	fig = nullptr )

Draws the paving while it is being computed.

Parameters

x0	Initial box
c	Contractor to use
eps	Accuracy of the paving algorithm (the undefined boxes will have their max_diam <= eps)
fig	Figure to draw on (optionnal, if not provided, the default figure will be used)

draw_while_paving() [2/4]

void codac2::draw_while_paving	(	const IntervalVector &	x0,
		const CtcBase< IntervalVector > &	c,
		double	eps,
		std::shared_ptr< Figure2D >	fig = nullptr )

Draws the paving while it is being computed.

Parameters

x0	Initial box
c	Contractor to use
eps	Accuracy of the paving algorithm (the undefined boxes will have their max_diam <= eps)
fig	Figure to draw on (optionnal, if not provided, the default figure will be used)

draw_while_paving() [3/4]

void codac2::draw_while_paving	(	const IntervalVector &	x0,
		std::shared_ptr< const SepBase >	s,
		double	eps,
		std::shared_ptr< Figure2D >	fig = nullptr )

Draws the paving while it is being computed.

Parameters

x0	Initial box
s	Separator to use
eps	Accuracy of the paving algorithm (the undefined boxes will have their max_diam <= eps)
fig	Figure to draw on (optionnal, if not provided, the default figure will be used)

draw_while_paving() [4/4]

void codac2::draw_while_paving	(	const IntervalVector &	x0,
		const SepBase &	s,
		double	eps,
		std::shared_ptr< Figure2D >	fig = nullptr )

Draws the paving while it is being computed.

Parameters

x0	Initial box
s	Separator to use
eps	Accuracy of the paving algorithm (the undefined boxes will have their max_diam <= eps)
fig	Figure to draw on (optionnal, if not provided, the default figure will be used)
