The Codac manual

Welcome to the Codac website. This manual is currently under construction. We are actively working on it and appreciate your patience as we build a comprehensive guide.

Codac (Catalog Of Domains And Contractors) is a C++/Python/Matlab library providing tools for interval computations and constraint programming over real numbers, trajectories and sets. It has numerous applications in parameter estimation, guaranteed integration, robot localization, and provides reliable outputs.

The toolbox allows to approximate feasible solutions of non-linear and/or differential systems. Since the solution of these complex systems cannot generally be calculated exactly, Codac uses numerical analysis to compute bounds on the sets of feasible solutions. The assets are guarantee (ensuring that no solutions are lost thanks to rigorous interval arithmetic) and thus exhaustiveness (capturing all possible values when multiple solutions exist).

Codac can therefore be used to establish numerical proofs or approximate solutions for complex systems involving variables of various types, such as real numbers, vectors, trajectories, uncertain sets, graphs, etc. Most of the library’s developers are motivated by challenges in mobile robotics, where Codac offers new perspectives.

Recent advances in interval methods have been made by the community, and the Codac library brings together some of the corresponding state-of-the-art implementations, with the goal of making them easy to combine.

Short example: solving an equation

One of Codac’s applications is to solve systems of equations. The following example [1] computes a reliable outer approximation of the solution set of the equation system:

(1)\[\begin{split}\left( \begin{array}{c} -x_3^2+2 x_3 \sin(x_3 x_1)+\cos(x_3 x_2)\\ 2 x_3 \cos(x_3 x_1)-\sin(x_3 x_2) \end{array}\right)=\mathbf{0}.\end{split}\]

The solution set is approximated from an initial box \([\mathbf{x}_0]=[0,2]\times[2,4]\times[0,10]\). The bisection involved in the paving algorithm is configured to provide boxes with a precision \(\epsilon=4\times 10^{-3}\).

from codac import *

x = VectorVar(3)
f = AnalyticFunction([x], [
  -(x[2]^2)+2*x[2]*sin(x[2]*x[0])+cos(x[2]*x[1]),
  2*x[2]*cos(x[2]*x[0])-sin(x[2]*x[1])
])

ctc = CtcInverse(f, [0,0])
draw_while_paving([[0,2],[2,4],[0,10]], ctc, 0.004)

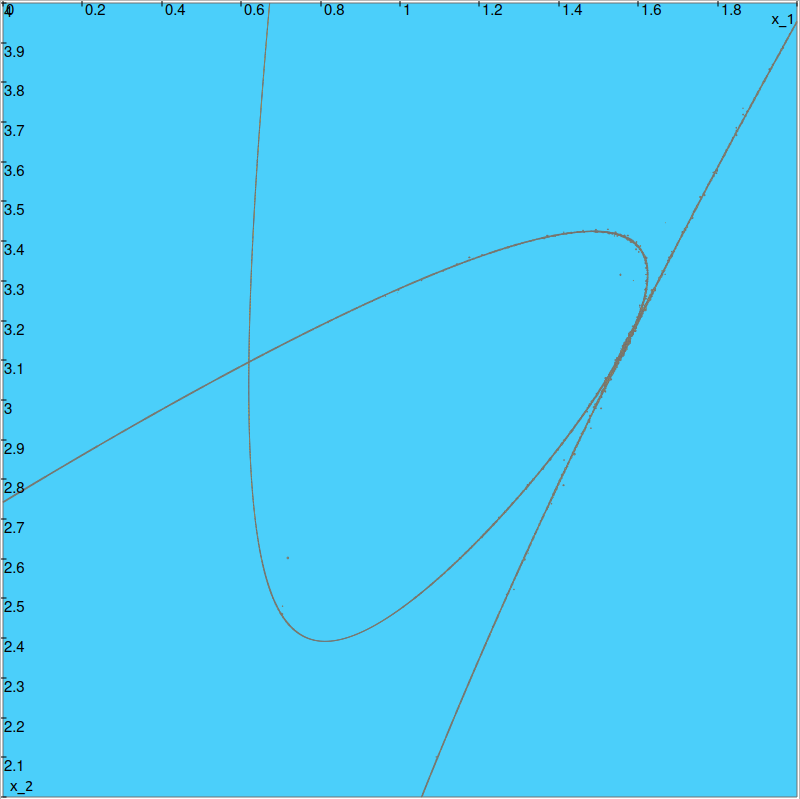

The result is a set of non-overlapping boxes containing the set of feasible solutions of (1). The following figure shows a projection of the computed set.

_images/example_malti.png

Outer approximation of the solution set, computed with CtcInverse. Blue parts are guaranteed to be solution-free. Computation time: 0.609s. 3624 boxes.

Short example: solving an inequality

The previous example showed a way of solving systems of the form \(\mathbf{f}(\mathbf{x})=\mathbf{0}\). The library also provides tools for solving generic systems expressed as \(\mathbf{f}(\mathbf{x})\in[\mathbf{y}]\) where \([\mathbf{y}]\) is an interval or a box.

The following code allows to compute the set of vectors \(\mathbf{x}\in\mathbb{R}^2\) satisfying the inequality:

(2)\[x_1\cos(x_1-x_2)+x_2 \leqslant 0\]
x = VectorVar(2)
f = AnalyticFunction([x], x[0]*cos(x[0]-x[1])+x[1])
sep = SepInverse(f, [-oo,0])
draw_while_paving([[-10,10],[-10,10]], sep, 0.004)

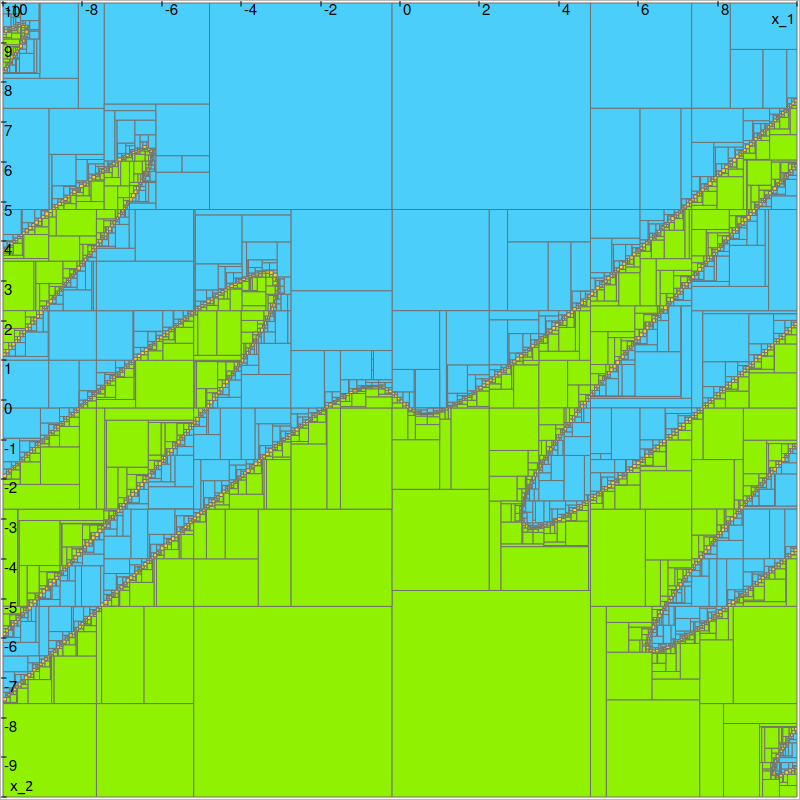

_images/example_ineq.png

Approximation of an enclosure of the solution set computed with SepInverse. The blue parts are guaranteed to have no solution, while any vector in the green boxes is a solution to the inequality. Computation time: 0.0809s.

Contributors

This list is in alphabetical order by surname.

We appreciate all contributions, whether code, documentation, bug reports, or suggestions. If you believe your name should be included here and it is not, please contact us so we can update the list.

Provisional Plan

Below is a provisional outline for the structure of this manual. Some pages are already available. Please note that sections may be revised or added as the content continues to evolve.


Overview of Codac

  • Intervals and constraints

  • The Codac framework

  • Target audience

User manual

How-to guides

  • Robotics

    • Non-linear state estimation

    • State estimation by solving data association

    • Range-only SLAM

    • Explored area

    • Loop detections and verifications

  • Geometry

    • 2d shape registration

  • Dynamical systems

    • Lie symmetries for guaranteed integration

    • Solving a discrete Lyapunov equation

    • Stability analysis of a non-linear system

Development

How to cite Codac

The main reference to the Codac library is the following paper:

@article{codac_lib,
  title={The {C}odac Library},
  url={https://cyber.bibl.u-szeged.hu/index.php/actcybern/article/view/4388},
  DOI={10.14232/actacyb.302772},
  journal={Acta Cybernetica},
  volume={26},
  number={4},
  series = {Special Issue of {SWIM} 2022},
  author={Rohou, Simon and Desrochers, Benoit and {Le Bars}, Fabrice},
  year={2024},
  month={Mar.},
  pages={871-887}
}
